Power range (kW) | 3-12 |
The efficiency of the stove (%) | 78.1 |
Exhaust duct (mm) | 150 |
External air supply | Yes |
secondary combustion | Yes |
Tertiary air supply | Yes |
Self-cleaning glass air | Yes |
type stoves | double-walled convection |
Rated power (kW) | 9 |
Material | 5 mm sheet (combustion chamber), 3mm plate (body), fire clay |
Standard | EN 13229, BlmSchV - Stufe 2, 15a B-VG, DINplus, Flamme Verte |
Emissions of CO (at 13% O2) (%) | 0,093 |
The average flue gas temperature (° C) | 308 |
Operating draft (Pa) | 12-14 |

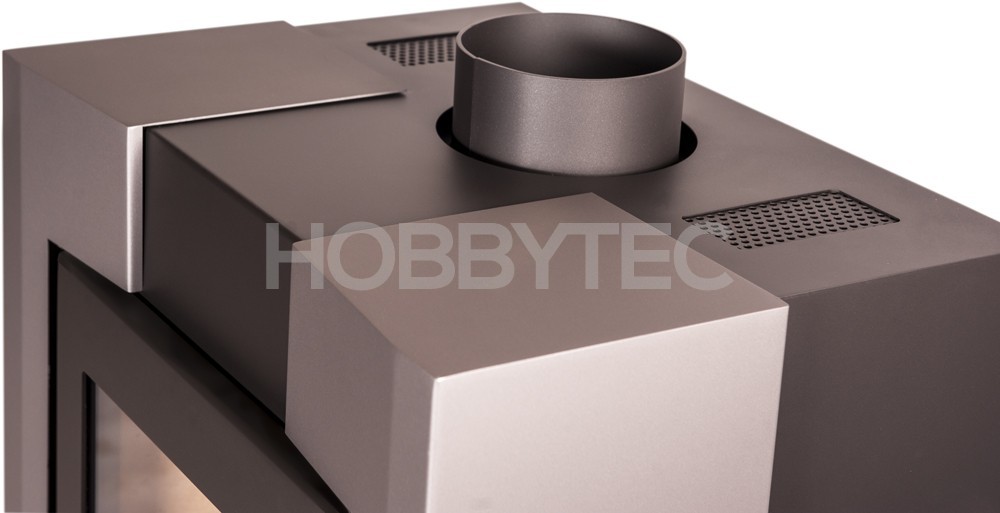

flue | upper |
Log length (cm) | 35 |
attaching | front |
Fuel | wood, wood briquettes |
Fuel consumption (kg / h) | 2.2 |
Ashtray | Yes |
deflector | Yes |
Fireclay Thickness (mm) | 30 |
glass type | straight |

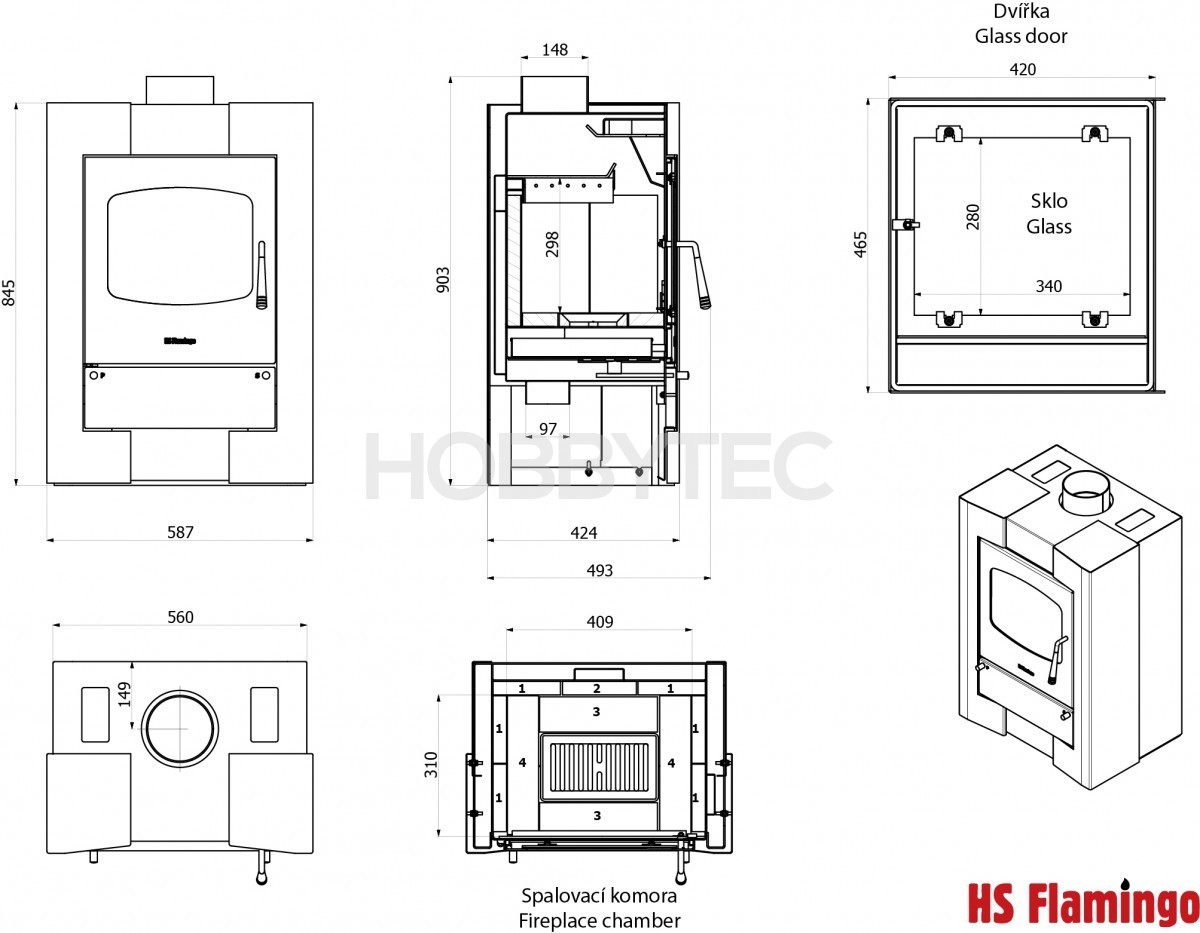

Glass dimension (W x H) (mm) | 340x280 |
Firebox dimension (W x D x H) (mm) | 405 x 280 x 310 |
Shipping pallet size (mm) | 520x750 |
Weight (kg): | 121.50 |
