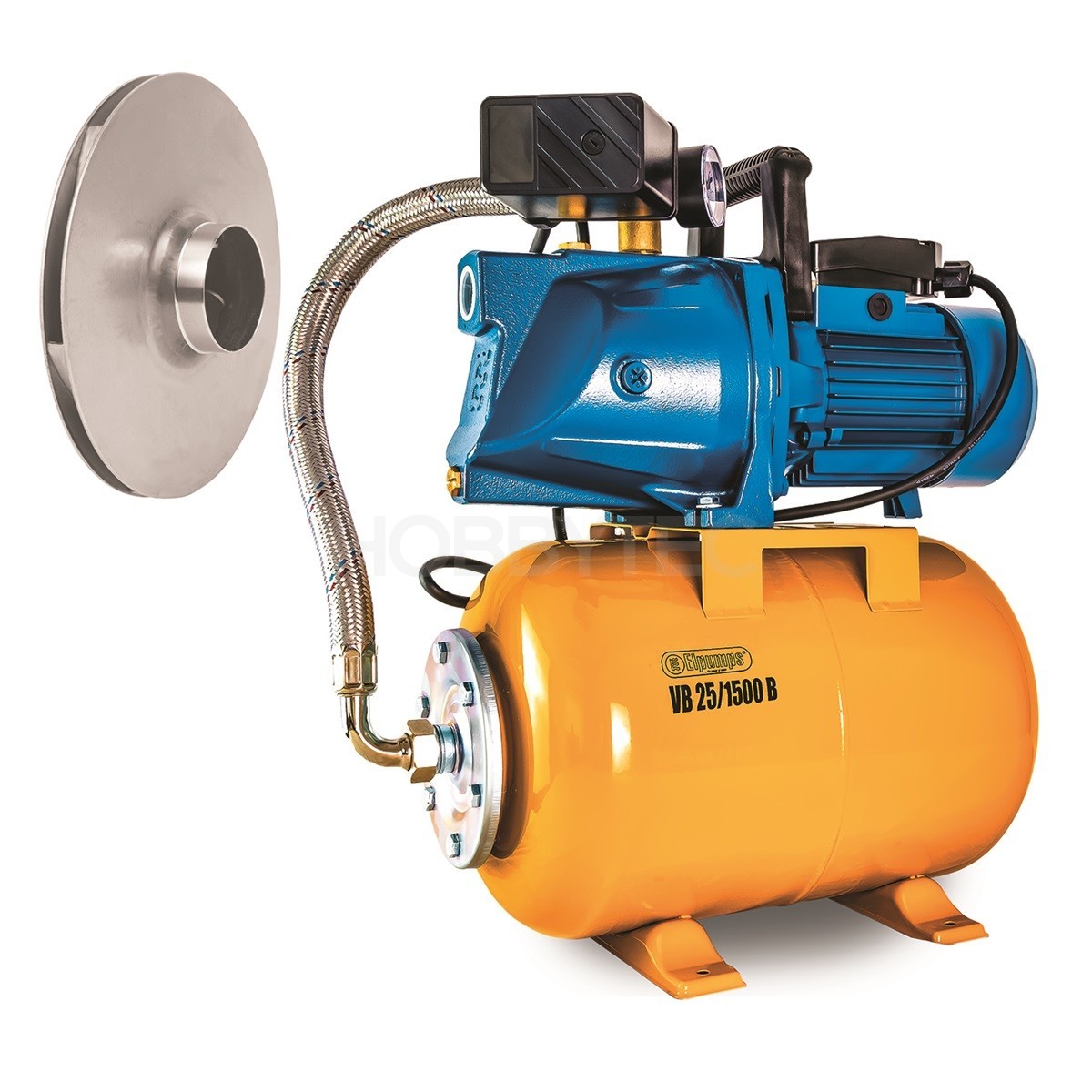

Elpumps VB 25/1500 B Booster

• Domestic pumping ELPUMPS meet all the customer needs to supply the house or garden drinking or potable water. The basis for smooth operation and long life are silent motors of at least 900 W. Only such powerful engines have enough power reserve to ensure that they never occurred overloading or overheating, which could cause damage to the motor. Internal and external parts are made of stainless materials. The customer can choose between the needs of a pressure vessel with a volume of 25 or 50 liters. Metal support legs provide good stability. Pumping stations can be equipped with an effective prefilter 1 liter and protection against running dry. VBP model is equipped with an embedded pump strainer 2 l.

• After turning the tap water tower connected to a water supply, water tank, etc. It turns and pushes the water to the point of use.
• Ensuring household drinking or potable water - irrigation, toilet flushing, faucets, washing machines, etc.
• Support for the water supply.
• Sampling of rainwater tanks, cisterns.

• The pump is self-priming design, ie. Startup need only fulfill the pump itself. Internal components of the pump are made of special durable plastic, so when there is no longer shut their corrosion. The pump housing is made of cast iron or special durable plastic (VBP model). The pump shaft is sealed by a professional double seal, combining spring-ceramic and silicon gaskets. Models marked B are heavy-duty brass impeller, which has excellent anti-corrosion characteristics, is far more resistant to abrasion influence of impurities (particles of sand, etc.) And can withstand without deformation due to the heat and possible idle (without water). The engine is specially hermetically sealed against water and is protected by a thermal fuse. The machine is designed so that in addition to the mechanical seal in the pump body are no parts which are exposed to wear. Pumps ELPUMPS thus characterized by a very long life. Pressure vessel is made of a thick-walled metal (VBP model in stainless steel) and welded on automatic robotic lines. Inside the container is a rubber liner. This guarantees a safe operation and excellent tightness of the container for a long time. The vessel is equipped with an accurate gauge of the output pressure of the waterworks and hydrokontrolou for automatic switching of the pump. The pressure values ​​can be adjusted as needed.

Parameters
